1U 17" Rack Mount Monitor Keyboard Drawer w/ detachable mini mouse

RKP7

$1,063.00$993.00
Save $70.00
Model: 17"
  • 17"
  • 19"
  • + Compare Family
FREE Shipping on orders over $100

The RKP7 is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.

RKP series provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control connected systems

Austin Hughes CyberView RKP7 Diagram

RKP7 Features:

  • 1U 17" TFT LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • Allows user to store and use a real mouse
  • Combo interface wither PS/2 or USB for single console drawer
  • 104-key keyboard with true optical mouse
  • Lock out wails to prevent movement of the keyboard
  • Adjustable mounting brackets from 390mm to 880mm
  • All mounting hardware included
  • Enhanced aesthetics with molded front handle and two point lock

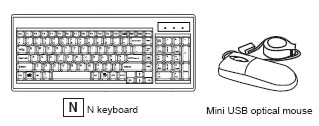

104-key Keyboard & Mini Optical Mouse

Optional Configurations (Contact us for availability)

RKP7 Package Contents

CyberView RKP7 Package Contents
  • (1) RKP7 Console Drawer
  • (1) WOM-01 wired mini USB optical mouse
  • (1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RKP7 Resources

CyberView RKP7 Diagram RKP7 Brochure (PDF)
RKP7 Manual (PDF)
RKP7 Integrated KVM Manuals (Link)

RKP7 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console31.5 lbs. (14.3 kg)
Console w/ KVM42 lbs. (19.1 kg)
Gross Weight
Single Console33.7 lbs. (15.3 kg)
Console w/ KVM46.4 lbs. (21.1 kg)
Mounting Distance
Single Console / Console with KVM26 ~ 34.3 inch
(660 ~ 870 mm)
Console Ports
Video InputVGA
Video OptionDVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )17"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 160° x 160°
Response time ( ms )5
Dot pitch ( mm )0.264
Display area ( mm )337.92H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

RKP7 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView RKP7 with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-RKP7-MUIP1613RKP7-MUIP3213
121-RKP7-MUIP1614RKP7-MUIP3214
112-RKP7-MUIP1624RKP7-MUIP3224
110-RKP7-MU1602RKP7-MU3202
120-RKP7-MU1603RKP7-MU3203
130-RKP7-MU1604RKP7-MU3204

Austin Hughes CyberView RKP7 with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101RKP7-UIP802RKP7-UIP1602RKP7-UIP3202
110RKP7-U802RKP7-U1602RKP7-U3202
100RKP7-U801RKP7-U1601RKP7-U3201

Austin Hughes CyberView RKP7 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100RKP7-1201D

Austin Hughes CyberView RKP7 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111RKP7-MIP813RKP7-MIP1613-
121RKP7-MIP814RKP7-MIP1614-
112RKP7-MIP824RKP7-MIP1624-
110RKP7-M802RKP7-M1602-
120RKP7-M803RKP7-M1603-
130RKP7-M804RKP7-M1604-

Austin Hughes CyberView RKP7 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101RKP7-IP802RKP7-IP1602-
110RKP7-802RKP7-1602-
100RKP7-S801RKP7-S1601-

Austin Hughes CyberView RKP7 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101RKP7-IP802HRKP7-IP1602H-
110RKP7-802HRKP7-1602H-
100RKP7-801HRKP7-1601H-

Austin Hughes CyberView RKP7 with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100RKP7-801RKP7-1601-
