1U 4K Dual Slide 17" Rack Mount Monitor Keyboard Drawer and Integrated 8-port 4K 60Hz KVM Switch

DK117-801Ke

$3,465.00$3,037.00
Save $428.00
Model: DK117-801Ke
  • + Compare Family
Version: 4K UHD & 1080p (16:9) Display
Integrated KVM: Integrated 8-Port 4K 60Hz KVM Switch
FREE Shipping on orders over $100

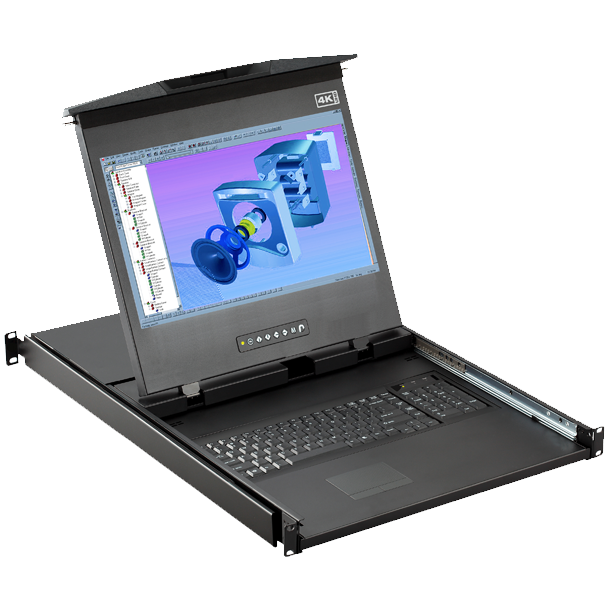

The new CyberView DK117-801Ke is a 1U 4K 17" Rack Mount Monitor Drawer with an Integrated 8-port 4K 60Hz KVM Switch. The D Series combines a keyboard, mouse and monitor with KVM switch into a single 1U drawer with independent sliding keyboard and monitor.  Other features include: flip-up design, adjustable brackets and built in LCD OSD to control multiple PCs from a single console. Dual slide technology allows the LCD to be left up/open when the rack door is closed.

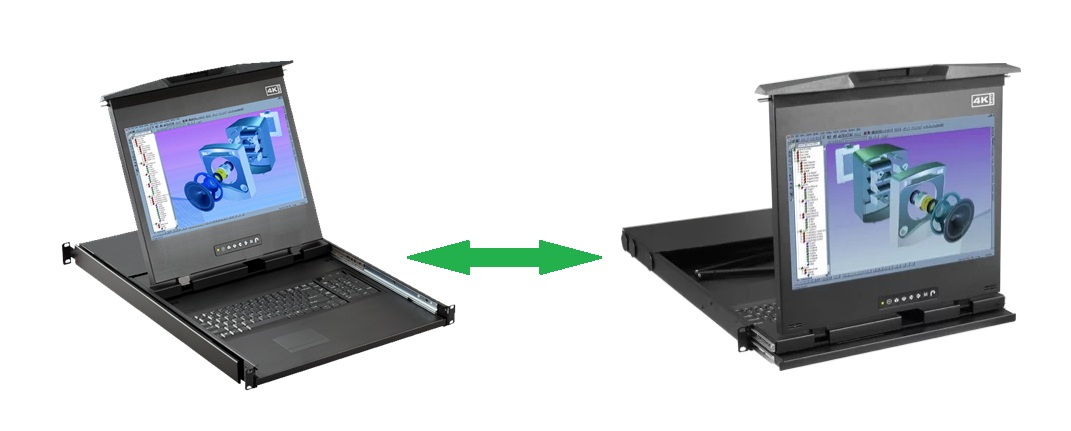

Austin Hughes CyberView DK117 Dual Side Rack Monitor User Station

DK117-801K Features and Benefits

  • 1U 17" 4K LCD console drawer
  • Dual slide - LCD and keyboard slide independently
  • 3840 x 2160 @60Hz native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball options
  • Built-in dual stereo speakers
  • Short depth design of 480mm
  • One Man installation design
  • Enhanced aesthetics with molded front panel and 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )
DK117 standard keyboard

DK117-801K Package Contents

CyberView DK117 Whats Included?
  • (1) DK117-801K Console Drawer
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )
  • Please note, for greatest flexibility, Cyberview KVMs no longer come bundled with cables.

DK117 Resources

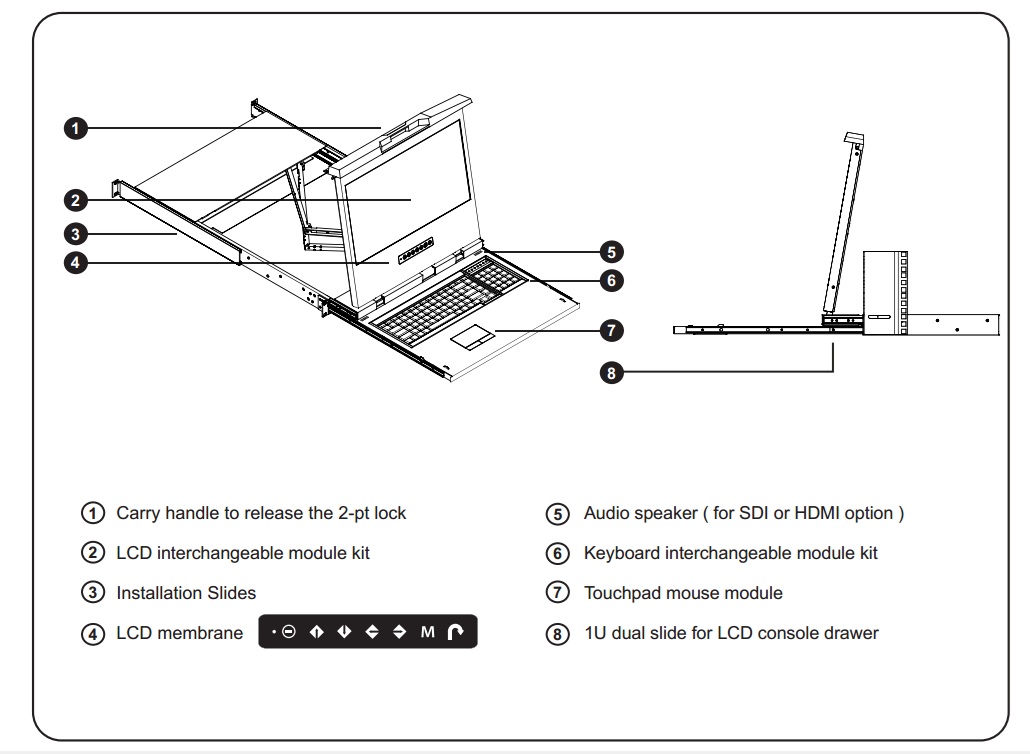

CyberView DK117 Diagram DK117 Brochure (PDF)
DK117 Manual (PDF)
DK117 Integrated KVM Manuals (Link)

Cyberview DK117 Specifications

Mechanical
Product Dimensions (H x W x D)Console w/ KVM: 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)Console w/ KVM: 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net WeightConsole w/ KVM: 28.6 lbs. (13 kg)
Gross WeightConsole w/ KVM: 41.8 lbs. (19 kg)
Mounting Distance Console w/ KVM: 26 ~ 34.3 inch
(660 ~ 870 mm)
Console Ports
Video InputDisplay port 1.2
KB / MS USB type B
DP console 6ft cable :
CK - 6P or
CK - 6H		Drawer end : HDMI + USB type B ( KB / MS )
Server end : DP or HDMI + USB type A
LCD Screen
LCD panel size ( diagonal )17.3"
Backlight typeLED
Native resolution3840 x 2160@60Hz
Brightness (cd/m2)310
Colors16.7 M, 8-bit
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D 89/89/89/89
Response time ( ms )16
Dot pitch ( mm )0.0.0995
Display area ( mm )382.12H x 214.94V
Surface treatmentAnti-glare
Surface hardness3H
MTBF (hrs)20,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 29W / Max. 38W
Power saving modeMax. 9W / Max. 18W
Power button onMax. 2W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant
