2U 19" 4:3 Triple-display Rack Console Drawer

MRK-19-3

$5,374.00$4,710.00
Save $664.00
Model: MRK-19-3
  • + Compare Family
Version: 19" 1280x1024
Displays: Triple
FREE Shipping on orders over $100

The CyberView MRK-19-3 is a 2U Triple-display 19" rack console drawer is designed for Command and Control Systems which demand quick deployment of side by side displays.

19" displays satisfy the increasing demand for superior graphics and image clarity. 2U 22" depth platform allows for small size and transit case portability. To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the MRK-19-3 drawer is meticulously constructed by our team of experts in our own CNC facilities for such applications.

Austin Hughes CyberView MRK-19-3 Rack Mounted

MRK-19-3 Features and Benefits

  • DVI-D + VGA video input ( per display )
  • 1280 x 1024 (4:3) native resolution
  • 2U 22" short depth design
  • Light weight only 49 lbs / 22 kgs
  • Rugged construction for mobility & durability
  • Built-in solid bearing slide rails
  • Built-in dual stereo speaker ( per display )
  • 104-key keyboard with either touchpad or trackball ( PS2 / USB )
  • Fits 24" ~ 36" rack via adjustable mounting brackets
  • 2-year standard warranty ( upgradable up to 5 years )

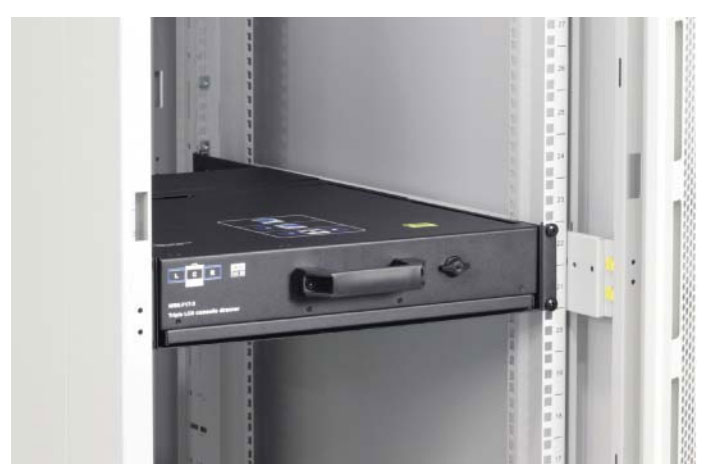

Austin Hughes CyberView MRK-19-3 Rack Mounted Stowed

MRK-19-3 Options

  • Front USB hub port for device access
  • 3G / HD / SD-SDI Broadcast-grade input
  • MAC or SUN Micro keyboard options available
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Touchscreen : Projected Capacitive ( 10-pt ) / Resistive ( 1-pt )

MRK-19-3 Package Contents

CyberView MRK-19-3 Package Contents
  • (1) MRK-19-3 Console Drawer
  • (3) 6ft DVI cable
  • (1) 6ft USB Keyboard cable
  • (1) Power adapter & cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

MRK-19-3 Resources

CyberView MRK-19-3 Diagram MRK-19-3 Brochure (PDF)
MRK-19-3 Manual (PDF)

CyberView MRK-19-3 Specifications

Mechanical
Product Dimensions (H x W x D)3.5 x 17.4 x 23.6 in
( 88 x 441.6 x 600 mm )
Package Dimensions (H x W x D)7.8 x 22.8 x 26.9 in
( 197 x 580 x 683 mm )
Net Weight58.7 lb ( 26.7 kg )
Gross Weight70.6 lb ( 32.1 kg )
Chassis ColorDark
Chassis MaterialsSteel
Mounting
Rack Mounting2U
Mounting Depth23.62 to 31.1 inch ( 600 to 790 mm )
Console Ports
Video InputDVI-D + VGA
Video OptionHDMI 1.2 / HDCP 1.1
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )337.92H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen onMax. 25W
Power saving modeMax. 4W
Power button onMax. 1W
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant
