| 32 Ports | 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|---|
| U-3201 | U-1601 | U-801 | 1 | 0 | 0 |
| U-IP3202 | U-IP1602 | U-IP802 | 1 | 1 | 0 |
| MU-IP3213 | MU-IP1613 | -- | 1 | 1 | 1 |
| MU-IP3214 | MU-IP1614 | -- | 1 | 1 | 2 |
| MU-IP3224 | MU-IP1624 | -- | 1 | 2 | 1 |
| U-3202 | U-1602 | U-802 | 1 | 0 | 1 |
| MU-3202 | MU-1602 | -- | 1 | 0 | 1 |
| MU-3203 | MU-1603 | -- | 1 | 0 | 2 |
| MU-3204 | MU-1604 | -- | 1 | 0 | 3 |
*Part numbers starting with 'M' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.
The MU-IP1613 is a 16 port Matrix Multi-User Cat6 IP KVM Switch. This matrix IP KVM switch features 3 consoles, 1 x local, 1 x remote and 1 x IP.

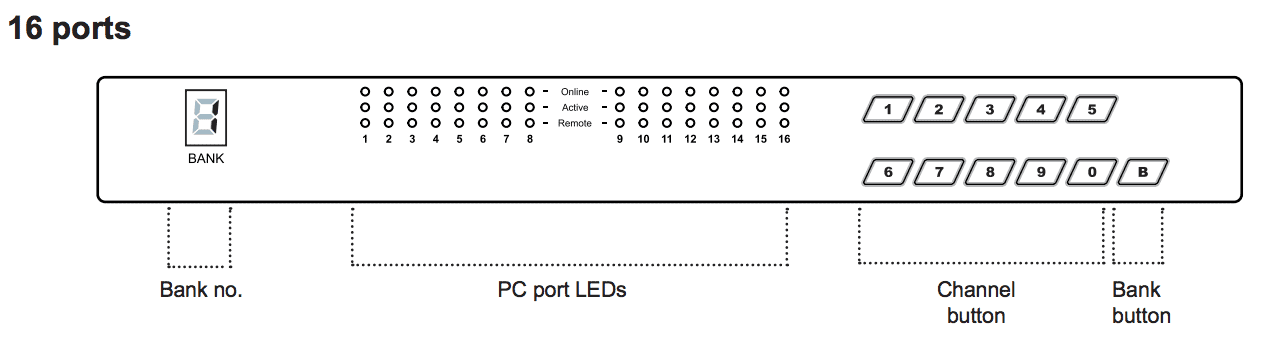

MU-IP1613 Front Diagram

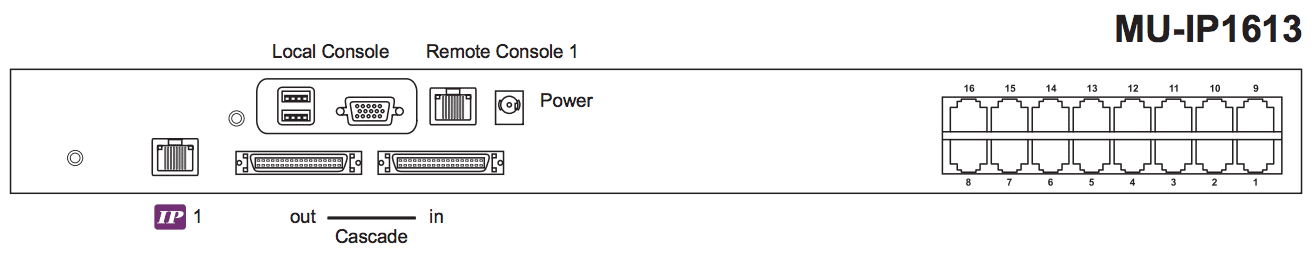

Use a VNC Viewer or Java Web Browser to connect to MU-IP1613 servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.
The MU-IP1613 Cat6 Matrix KVM can be controlled by one user from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.
MU-IP1613 supports any combination of DVI, DisplayPort, HDMI, USB-C, VGA, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.

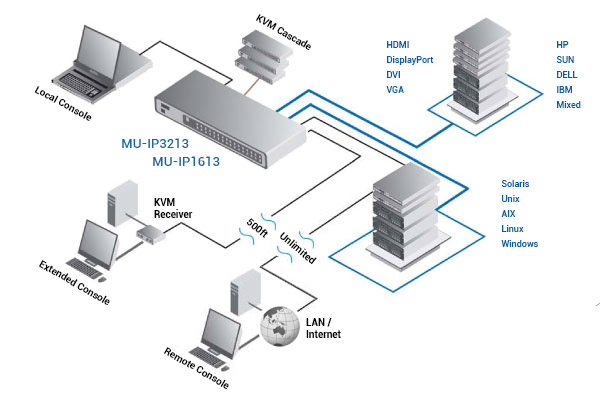

One local user, one extended user, and one remote IP user can control 16 multi-platform servers simultaneously. Up to 15 different IP user profiles can be stored with personal settings for each user defined.
The CyberView Cat6 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
The CyberView MU-IP1613 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Expand up to 256 source computers simply by linking Cat6 Matrix KVM units using CMC-8 cables. The MU-IP1613 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of MU-1602 / MU-3202 or M-802 / M-1602 KVM switches.
CyberView MU-IP1613 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.
CyberView MU-IP1613 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
MU-IP1613 Datasheet (PDF)
MU-IP1613 Manual (PDF)
MU-IP1613 KVM-Over-IP Manual (PDF)
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.6 in. (448 mm.) |
| Depth | 7.1 in. (180 mm.) |
| Weight | 9 lbs. (4 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50°C / -5 to 60°C |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G peak acceleration (11 ms, half-sine wave) |
| Vibration | 58~100Hz / 0.98G (11 ms/cycle) |
| Power | 100~240VAC, 50 / 60Hz 0.5A via AC / DC cord |
| KVM Port | 16 x RJ45 connector |
| KVM Dongle | DVI-D / VGA connector dongle up to 132 ft. (40 meters) Cat6 / Cat5 cable |
| Simultaneous Console Access | |
| Local | 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS |
| Remote (1 or 2) | 1 x RJ45, up to 1000ft (300 meters) Cat6 / Cat5 cable |
| IP Access (1 or 2) | 1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port |
| IP Security | SSL v3, RSA, AES, CSR, http & https internet access 15-user login (1 x active user) |
| Remote Receiver (1, 2 or 3) | 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS, 1 x KVM port for connecting to extra PC |
| Expansion | Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers |
| Compatibility | Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix |
| Regulatory Approval | FCC, CE |
| Function | Hot Key Sequence |
| Calling OSD Menu | [Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc] |
| Previous Port | [Scr Lock] [Scr Lock] [Up] |
| Next Port | [Scr Lock] [Scr Lock] [Down] |
| Previous/Next Bank | [Scr Lock] [Scr Lock] + [PgUp/PgDn] |
| Switch to Specific Port | [Scr Lock] [Scr Lock] + Bank # + Port # |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [B] |
| Logout (Password Security Must Be On) | [Scr Lock] [Scr Lock] [P] |
| Advanced HotKeys (For Supervisor Login Only) | |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Reset Factory Defualts | [Scr Lock] [Scr Lock] [R] |
| Disable/Enable Password Security | [Scr Lock] [Scr Lock] [U] |
| Enable/Disable Screen Saving | [Scr Lock] [Scr Lock] [L] |
| Remote Console HotKeys | |
| Toggle Remote/Local Port | [Scr Lock] [Scr Lock] [C] |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [Q] |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Auto Adjust Video Signal | [Scr Lock] [Scr Lock] [A] |
