| 32 Ports | 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|---|
| U-3201 | U-1601 | U-801 | 1 | 0 | 0 |
| U-IP3202 | U-IP1602 | U-IP802 | 1 | 1 | 0 |
| MU-IP3213 | MU-IP1613 | -- | 1 | 1 | 1 |
| MU-IP3214 | MU-IP1614 | -- | 1 | 1 | 2 |
| MU-IP3224 | MU-IP1624 | -- | 1 | 2 | 1 |
| U-3202 | U-1602 | U-802 | 1 | 0 | 1 |
| MU-3202 | MU-1602 | -- | 1 | 0 | 1 |
| MU-3203 | MU-1603 | -- | 1 | 0 | 2 |
| MU-3204 | MU-1604 | -- | 1 | 0 | 3 |
*Part numbers starting with 'M' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.

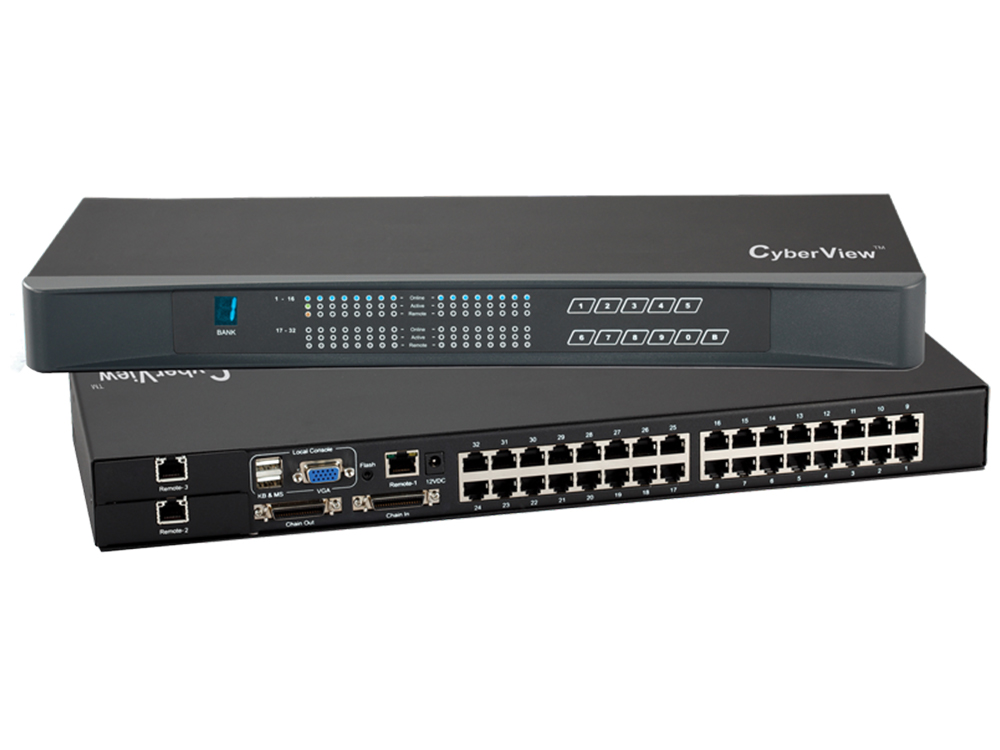

Securely control your servers from anywhere in the world via TCP/IP. The CyberView U-IP3202 is an affordable, single-user, 32-port, IP enabled CAT6 KVM. The U-IP3202 supports multiple input styles and multiple platforms. Mix and match USB and PS/2 servers across Windows, Linux and other platforms.
The CyberView U-IP3202 is a cost effective solution for anywhere, anytime KVM-over-IP access for BIOS-level remote server management.

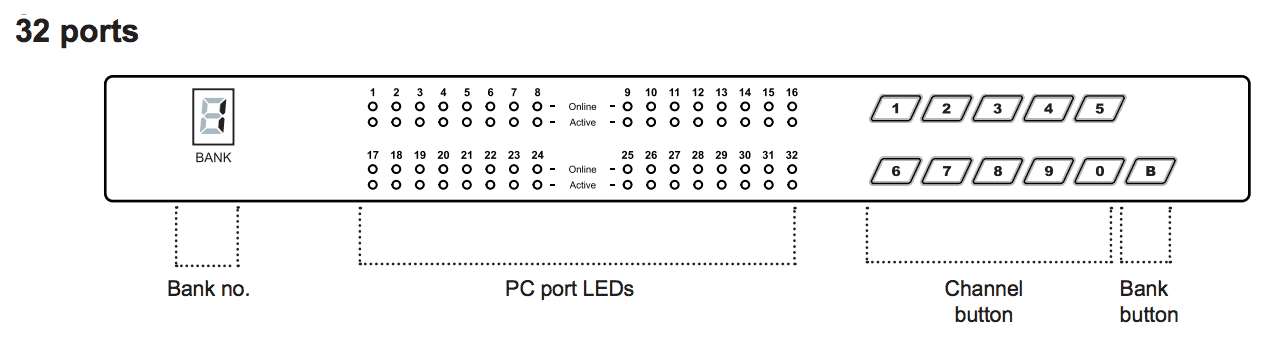

U-IP3202 Front Diagram

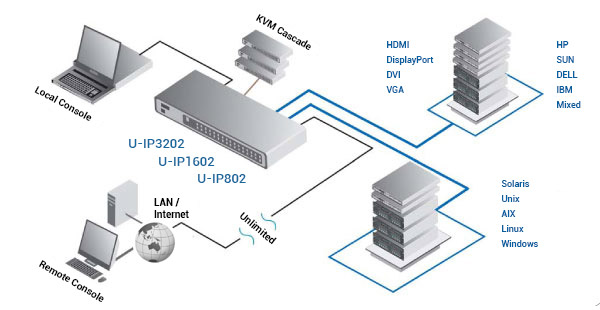

Use a VNC Viewer or Java Web Browser to connect to UIP-3202 servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p. Please note: a firmware upgrade may be required for VNC viewer support.
U-IP3202 supports any combination of DVI, DisplayPort, HDMI, USB-C, VGA, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.
One local user or one remote IP user can control 32 multi-platform servers. Up to 15 different IP user profiles can be stored with personal settings for each user defined.
The CyberView Cat6 Combo KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
The CyberView U-IP3202 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Expand up to 256 source computers simply by linking Cat6 Combo KVM units using CBC-6 cables. The U-IP3202 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of U-801 / U-1601 / U-3201 KVM switches.
For mission critical applications, Cat6 Combo series now supports dual power inlets (Dual-AC). If one source fails, the U-IP3202 will switch sources so as not to interrupt normal use of the connected servers. Alternatively, customers can also get DC power input integrated into the KVM.
CyberView U-IP3202 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
U-IP3202 Datasheet (PDF)
U-IP3202 Manual (PDF)
U-IP3202 KVM-Over-IP Manual (PDF)
Firmware update FAQ
Firmware update download
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 7.1 in. (180 mm.) |
| Depth | 17.6 in. (446 mm.) |
| Weight | 9 lbs. (4 kg.) |
| Environmental | |
| Operating / Storage Temperature | 0 to 50°C / -5 to 60°C |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G peak acceleration (11ms, half-sine wave) |
| Vibration | 58~100Hz / 0.98G (11min./cycle) |
| Power | 100~240VAC, 50/60Hz 0.3A via IEC type cord (12V / 24V / 48V DC input option) |
| KVM Port | 32 x RJ45 connector |
| KVM Dongle | DVI-D/VGA connector dongle up to 132 ft. (Cat6/Cat5 cable not included) |
| Console | |
| Local | 1 x DB-15 (up to 1600 x 1200) |
| IP Access | 1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port |
| IP Sercurity | SSL v3 RSA, AES, CSR, http & https internet access, 15-user login (1 x active user) |
| Expansion | Support mixed Combo Cat6 or Combo DB-15 KVM, up to 256 servers |
| Compatibility | |
| Hardware | Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server. |
| Operating Systems | Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix |
| Regulatory Approval | cUL, FCC & CE certified |
| Function | Hot Key Sequence |
| Calling OSD Menu | [Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc] |
| Previous Port | [Scr Lock] [Scr Lock] [Up] |
| Next Port | [Scr Lock] [Scr Lock] [Down] |
| Previous/Next Bank | [Scr Lock] [Scr Lock] + [PgUp/PgDn] |
| Switch to Specific Port | [Scr Lock] [Scr Lock] + Bank # + Port # |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [B] |
| Logout (Password Security Must Be On) | [Scr Lock] [Scr Lock] [P] |
| Advanced HotKeys (For Supervisor Login Only) | |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Reset Factory Defualts | [Scr Lock] [Scr Lock] [R] |
| Disable/Enable Password Security | [Scr Lock] [Scr Lock] [U] |
| Enable/Disable Screen Saving | [Scr Lock] [Scr Lock] [L] |
| Remote Console HotKeys | |
| Toggle Remote/Local Port | [Scr Lock] [Scr Lock] [C] |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [Q] |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Auto Adjust Video Signal | [Scr Lock] [Scr Lock] [A] |
