| 32 Ports | 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|---|
| U-3201 | U-1601 | U-801 | 1 | 0 | 0 |
| U-IP3202 | U-IP1602 | U-IP802 | 1 | 1 | 0 |
| MU-IP3213 | MU-IP1613 | -- | 1 | 1 | 1 |
| MU-IP3214 | MU-IP1614 | -- | 1 | 1 | 2 |
| MU-IP3224 | MU-IP1624 | -- | 1 | 2 | 1 |
| U-3202 | U-1602 | U-802 | 1 | 0 | 1 |
| MU-3202 | MU-1602 | -- | 1 | 0 | 1 |
| MU-3203 | MU-1603 | -- | 1 | 0 | 2 |
| MU-3204 | MU-1604 | -- | 1 | 0 | 3 |
*Part numbers starting with 'M' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.

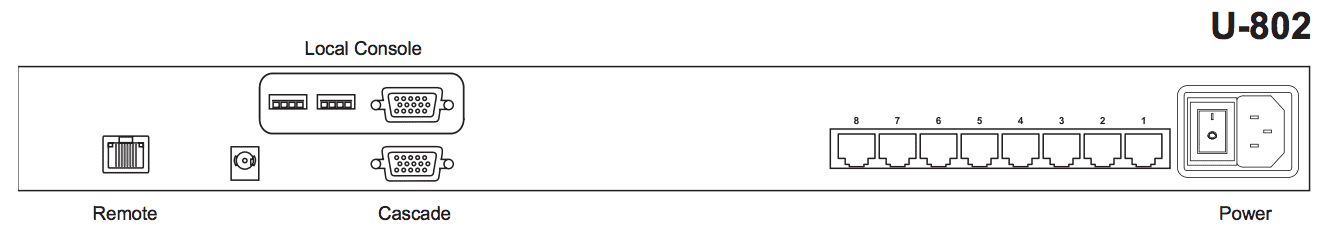

The U-802 is a 8-Port Combo Cat6 KVM Switch. This combo KVM switch features 2 consoles, 1 x local and 1 x remote.

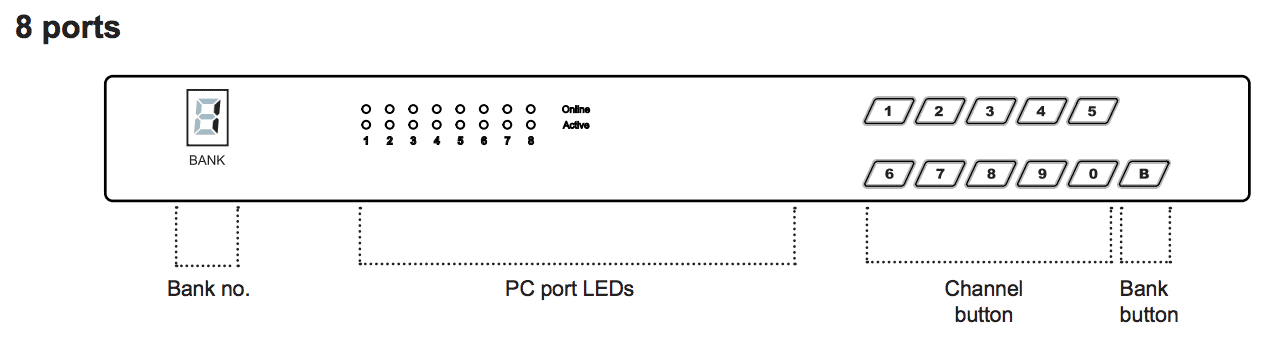

U-802 Front Diagram

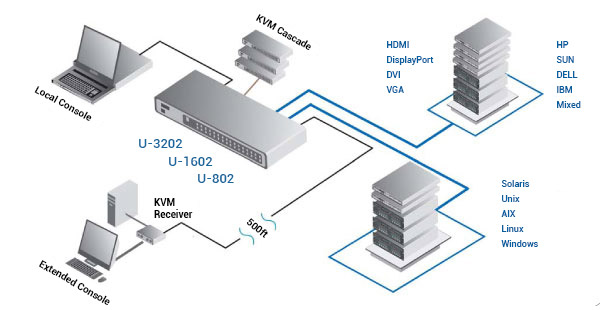

The U-802 Cat6 Combo KVM can be controlled by one user from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.
U-802 supports any combination of VGA, DVI, HDMI, DisplayPort, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.
One local user or one extended user can control 8 multi-platform servers. Expand up to 256 source computers simply by linking Cat6 Combo KVMs.
The CyberView Cat6 Combo KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
The CyberView U-802 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Expand up to 256 source computers simply by linking Cat6 Combo KVM units using CBC-6 cables. The U-802 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of U-801 / U-1601 / U-3201 KVM switches.
For mission critical applications, Cat6 Combo series now supports dual power inlets (Dual-AC). If one source fails, the U-802 will switch sources so as not to interrupt normal use of the connected servers. Alternatively, customers can also get DC power input integrated into the KVM.
CyberView U-802 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
U-802 Datasheet (PDF)
U-802 Manual (PDF)
| KVM Port | |
| Number of ports | 8 |
| Connector | RJ-45 |
| Connectivity | DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable |
| Local Console | |
| Monitor Port | 1 x DB-15 VGA (Up to 1600 x 1200) |
| Keyboard/Mouse | 2 x USB type A connector for keyboard & mouse |
| Resolution Support | 4:3 - max. 1600 x 1200 16:10 - max. 1440 x 900 |
| Remote Console | |
| Number Of Remote Ports | 1 |
| Monitor Port | 1 x DB 15-pin, VGA (Up to 1600 x 1200) |
| Keyboard/Mouse Port | 2 x USB type connector for keyboard & mouse |
| Remote I/O | J45 via Cat5 / Cat5e / Cat6 cable up to 150m |
| Expansion | Up to 256 servers by 8-level cascade |
| Compatibility | |
| Multi-platform | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| Support | Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | |
| Input | Auto sensing 100 to 240VAC, 50 / 60 Hz |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| Regulatory | |
| Safety | UL, FCC & CE certified |
| Enviroment | RoHS2 & REACH compliant |
| Mechanical | |
| Height | 1.73 in. (4.4 cm.) |
| Width | 17.4 in. (44.3 cm.) |
| Depth | 6.7 in. (17.1 cm.) |
| Weight | 6.5 lbs. (3.0 kg.) |
| Package Dimensions (HxWxD) | 19.7 x 15.7 x 3.5 inch (500 x 400 x 90 mm) |
| Package Weight | 11.0 lbs. (5.0 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G acceleration (11ms, half sine wave) |
| Vibration | 8~100Hz / 0.98G (11ms / cycle) |
| Function | Hot Key Sequence |
| Calling OSD Menu | [Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc] |
| Previous Port | [Scr Lock] [Scr Lock] [Up] |
| Next Port | [Scr Lock] [Scr Lock] [Down] |
| Previous/Next Bank | [Scr Lock] [Scr Lock] + [PgUp/PgDn] |
| Switch to Specific Port | [Scr Lock] [Scr Lock] + Bank # + Port # |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [B] |
| Logout (Password Security Must Be On) | [Scr Lock] [Scr Lock] [P] |
| Advanced HotKeys (For Supervisor Login Only) | |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Reset Factory Defualts | [Scr Lock] [Scr Lock] [R] |
| Disable/Enable Password Security | [Scr Lock] [Scr Lock] [U] |
| Enable/Disable Screen Saving | [Scr Lock] [Scr Lock] [L] |
| Remote Console HotKeys | |
| Toggle Remote/Local Port | [Scr Lock] [Scr Lock] [C] |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [Q] |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Auto Adjust Video Signal | [Scr Lock] [Scr Lock] [A] |
