| 32 Ports | 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|---|
| U-3201 | U-1601 | U-801 | 1 | 0 | 0 |
| U-IP3202 | U-IP1602 | U-IP802 | 1 | 1 | 0 |
| MU-IP3213 | MU-IP1613 | -- | 1 | 1 | 1 |
| MU-IP3214 | MU-IP1614 | -- | 1 | 1 | 2 |
| MU-IP3224 | MU-IP1624 | -- | 1 | 2 | 1 |
| U-3202 | U-1602 | U-802 | 1 | 0 | 1 |
| MU-3202 | MU-1602 | -- | 1 | 0 | 1 |
| MU-3203 | MU-1603 | -- | 1 | 0 | 2 |
| MU-3204 | MU-1604 | -- | 1 | 0 | 3 |
*Part numbers starting with 'M' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.
The U-3201 is a 8-port Combo Cat6 KVM Switch.

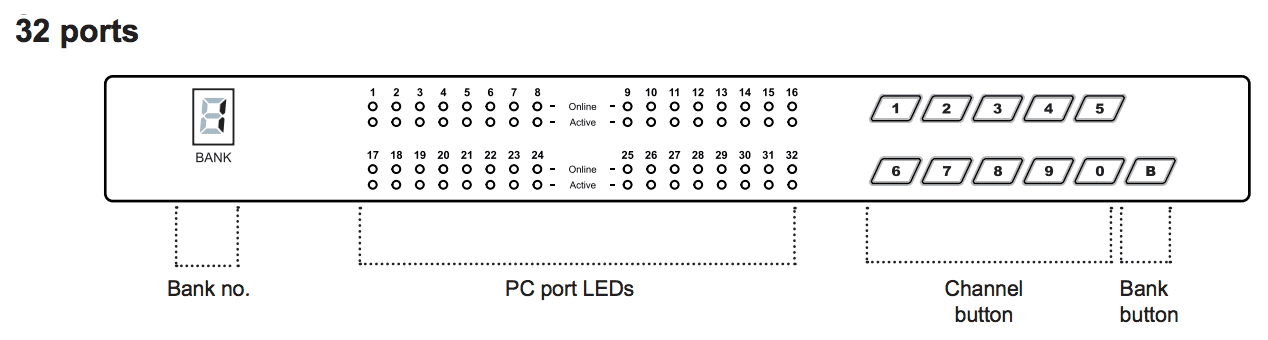

U-3201 Front DiagramU-3201 supports any combination of VGA, DVI, HDMI, DisplayPort, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.

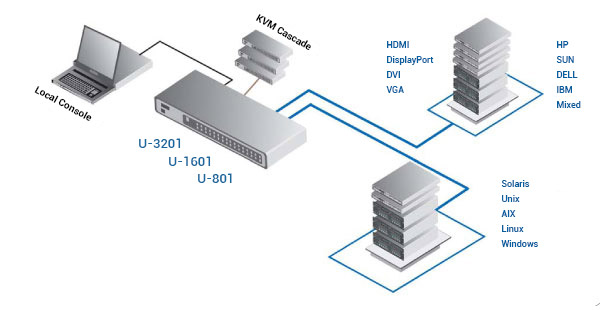

One local user can control 32 multi-platform servers. Expand up to 256 source computers simply by linking Cat6 Combo KVMs.
The CyberView Cat6 Combo KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
The CyberView U-3201 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Expand up to 256 source computers simply by linking Cat6 Combo KVM units using CBC-6 cables. The U-3201 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of U-801 / U-1601 / U-3201 KVM switches.
For mission critical applications, Cat6 Combo series now supports dual power inlets (Dual-AC). If one source fails, the U-3201 will switch sources so as not to interrupt normal use of the connected servers. Alternatively, customers can also get DC power input integrated into the KVM.

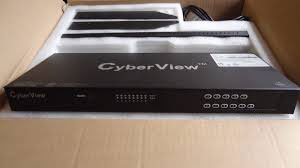

CyberView U-3201 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
U-3201 Datasheet (PDF)
U-3201 Manual (PDF)
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (443 mm.) |
| Depth | 6.7 in. (171 mm.) |
| Weight | 6.5 lbs. (3 kg.) |
| Environmental | |
| Operating / Storage Temperature | 0 to 55°C / -20 to 60°C |
| Relative Humidity | 20-90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz / 1G random vibration |
| Power | 100~240VAC, 50/60Hz 0.5A via IEC type cord (12V / 24V / 48V DC input option) |

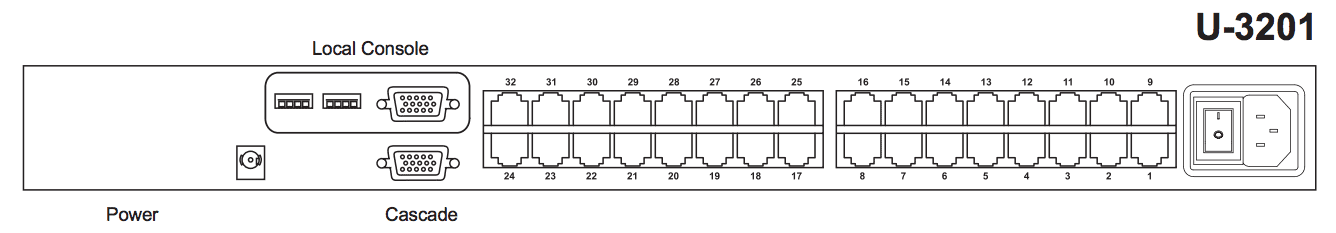

| KVM Port | 32 x RJ45 connector |
| KVM Dongle | DVI-D / VGA connector dongle up to 132 ft. Cat6 / Cat5 cable |
| Local Console | |
| DB-15 VGA | 1 (4:3 - max. 1600 x 1200, 16:9 - max. 1920 x 1080) |
| USB for KB & MS | 2 |
| Expansion | Support mixed Combo Cat6 or Combo DB-15 KVM, up to 256 servers |
| Compatibility | |
| Hardware | Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server. |
| Operating Systems | Windows Vista / 2003 / XP / 2000, Linux, Unix, Mac OS |
| Regulatory Approval | cUL, FCC, CE, RoHS2, REACH |
