1U 17" Full HD Rack Mount Monitor Drawer

RP-F117

$1,228.00$1,076.00
Save $152.00
Model: RP-F117
FREE Shipping on orders over $100

The RP-F117 is a 1U 17" widescreen rackmount LCD monitor  with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

Drawer Features and Dispaly Benefits

  • 1U 17" widescreen LCD drawer with DVI-D / VGA input
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • Enhanced aesthetics with molded front panel and two point lock
  • Short depth design of 480mm ( 18.9" ) only

RP-F117 rear

Options

  • HDMI 1.3 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio Input & Output
  • DC power : 12V / 24V / 48V / 125V
  • Touchscreen : Resistive 1-pt

For Multi-display control, DC power, SDI, and touchscreen options please call 1-877-586-6654.

RP-F117 Package Contents

CyberView RP-F117 Package Contents
  • (1) RP-F117 Rack Monitor Drawer
  • (1) 6ft VGA cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RP-F117 Resources

CyberView RP-F117 Dimensions RP-F117 Brochure (PDF)
RP-F117 Manual (PDF)
Touch Screen Calibration Manual (PDF)

RP-F117 Specifications

Mechanical
Product Dimensions (H x W x D)1.73 x 17.4 x 18.9 in
( 44 x 442 x 480 mm )
Package Dimensions (H x W x D)4.7 x 23.1 x 29.8 in
( 120 x 588 x 758 mm )
Net Weight24.2 lb ( 11 kg )
Gross Weight33 lb ( 15 kg )
Mounting
Rack Mounting1U
Mounting Depth19.3 to 28.3 inch (490 to 720 mm)
Console Ports
Video InputVGA + HDMI single link
Video OptionHDMI 1.3 / HDCP 1.1
LCD Screen
LCD panel size ( diagonal )17.3"
Backlight typeLED
Native resolution1920 x 1080
Brightness (cd/m2)400
Colors16.7 M, 8-bit
Contrast Ratio (typ)600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Response time ( ms )40
Dot pitch ( mm )0.1989
Display area ( mm )381.888H x 214.812V
Surface treatmentAnti-glare, Hard-coating
Surface hardness3H
MTBF (hrs)50,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen onMax. 25W
Power saving modeMax. 4W
Power button onMax. 1W
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

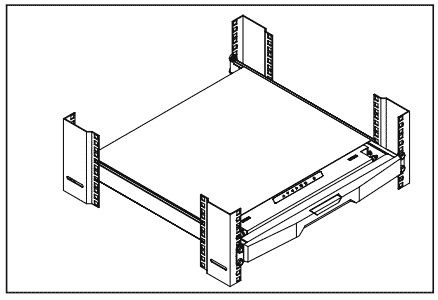

Question: Will this fit a standard 19" Rack width?
Answer: Thank you for your inquiry,

It will indeed, the CyberView RP-F117 is designed to mount into any standard 19" EIA server rack.

Question: Thanks for your quick reply to my last. How far will the screen tilt forward, will it go past 90 degrees vertical so as to be pointing downward slightly?
Answer: Thank you for your inquiry,

Our pleasure! That is correct, the Raloy RP-F117 display tilts from 0? (closed) to right around 100? (open). The 17" display also has a Viewing Angle ( L/R/U/D ) of 80/80/60/80.

Please let us know if there is anything else we can help you out with, or would like any help configuring your application.
