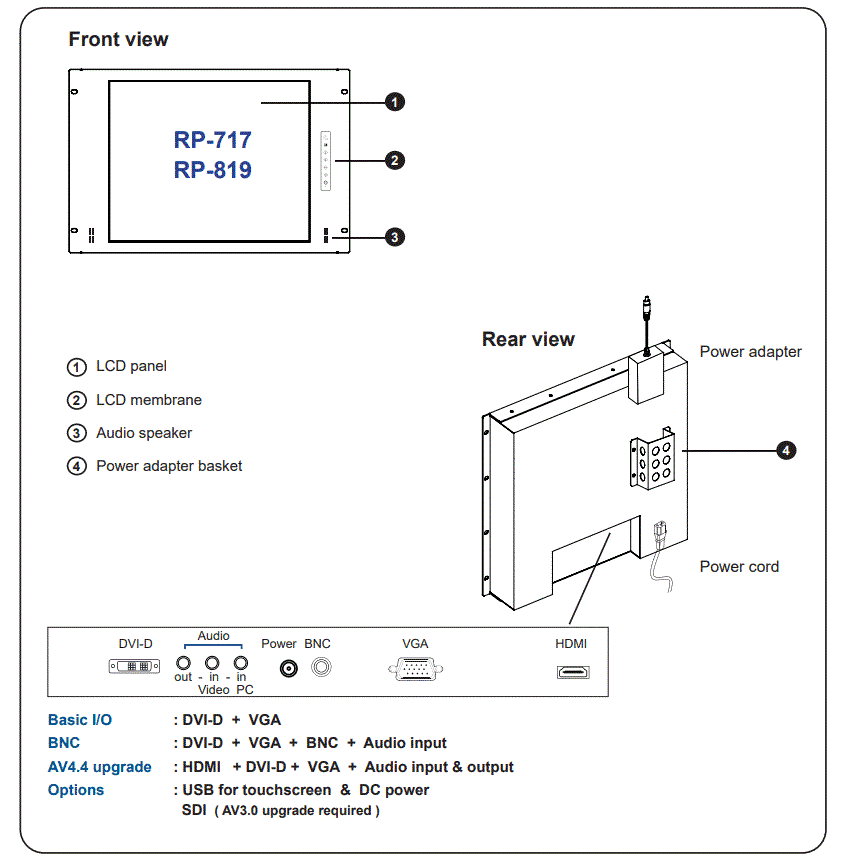

The RP819 is a 8U 19" rackmount LCD monitor with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
RP819 Features
- 8U 19" rackmount LCD with DVI-D/VGA input
- 1280 x 1024 native resolution / 16.7M colors ( RP-717 / RP-819 )
- 1600 x 1200 native resolution / 16.7M colors ( RP-920 )
- Ideal for CCTV security and industrial control
Available upgrades include
- 3G/HD/SD-SDI Broadcast-grade input
- MCS Multi-display control solution
- 19" Touchscreen: Captive, Resistive
- Composite (BNC) or Audio input
- HDMI or DVI-D (Either one for AV2.2 upgrade)
- DC power: 12V/24V/48V/110~125V
- MIL-type or lockable connector

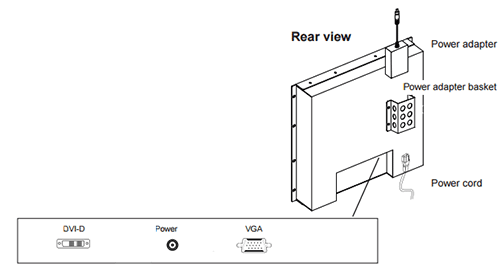

RP819 Rack Mount LCD with AV option
RP-819 Package Contents
- (1) RP-819 Rack LCD Panel
- (1) 6ft VGA cable
- (1) Power adapter
- (1) Power cord
- (1) 2-year standard warranty ( upgradable up to 5 years )
RP-819 Resources
RP-819 Brochure (PDF)
RP-819 Manual (PDF)
Multi-Monitor OSD Controller (MCS) Brochure (PDF)
Multi-Monitor OSD Controller (MCS) Manual (PDF)
Touch Screen Calibration Manual (PDF)
RP-819 Specifications
Mechanical | |||||||
Product Dimensions (H x W x D) | 14 x 18.9 x 2.1 in ( 355 x 480 x 53 mm ) | ||||||
Package Dimensions (H x W x D) | 20.8 x 21.2 x 5.1 in ( 529 x 539 x 129 mm ) | ||||||
Net Weight | 12.5 lb ( 5.7 kg ) | ||||||
Gross Weight | 17.6 lb ( 8 kg ) | ||||||
Console Ports | |||||||
Video Input | VGA + HDMI single link | ||||||
Video Option | HDMI 1.2 / HDCP 1.1 Composite ( BNC ) - NTSC & PAL | ||||||
LCD Screen | |||||||
LCD panel size ( diagonal ) | 19" | ||||||
Backlight type | LED | ||||||
Native resolution | 1280 x 1024 | ||||||
Brightness (cd/m2) | 250 | ||||||
Colors | 16.7 M | ||||||
Contrast Ratio (typ) | 1000 : 1 | ||||||
Viewing angle ( L/R/U/D ) | 85/85/80/80 | ||||||
Viewing angle (H x V) | 170° x 160° | ||||||
Response time ( ms ) | 5 | ||||||
Dot pitch ( mm ) | 0.294 | ||||||
Display area ( mm ) | 376.32H x 270.33V | ||||||
Surface treatment | Haze 25%, Hard-coating | ||||||
Surface hardness | 3H | ||||||
MTBF (hrs) | 30,000 | ||||||
Audio Option | |||||||
Speaker | 2x 2W (Dual Stereo) | ||||||
Input Connector | 3.5mm stereo jack | ||||||
Input Impedance / Power level | 30Ω / 750mV | ||||||
Output Connector | 3.5mm stereo jack | ||||||
Output Impedance / Power level | 30Ω / 2.8V | ||||||
Power | |||||||
Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
Power Consumption |
| ||||||
Environmental | |||||||
Operating Temperature | 0 to 55°C Degree | ||||||
Storage Temperature | -20 to 60°C Degree | ||||||
Operating Humidity | 20~90%, non-condensing | ||||||
Relative Humidity | 5~90%, non-condensing | ||||||
Operating Altitude | 16,000 ft | ||||||
Non-operating Altitude | 40,000 ft | ||||||
Shock | 10G acceleration (11ms duration) | ||||||
Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
Regulatory Compliance | |||||||
EMC | FCC & CE certified | ||||||
Safety | CE / LVD certified | ||||||
Environment | RoHS2 & REACH compliant |
The RP-819 series is also known as the RP819.
Question: Does this product (RP-819) have VESA mounting as well?
Answer: Thank you for your inquiry.
Unfortunately, this product does not have a VESA wall mounting option as they are mainly intended for rackmount usage. That being said, the manufacturer also offers the similar AP-19 which does offer VESA mounting option.
Please let us know if there is anything else we can help you with!
Question: Do this monitor have a switch function that I can switch between RCA and SVGA remoteley ? Is there a local supplier in south Africa
Answer: Thank you for your inquiry.
According to the manufacturer, there is a remote switching option. We are waiting to hear back on the details.
For finding a local supplier, we would suggest contacting the manufacturer directly at:
http://www.austin-hughes.eu/contact_us.cfm
Question: What is the cost of the optional IP65/NEMA sealed front 2mm protective glass for LCD; and what is the ARO for 4 displays?
Answer: The Optional IP65/NEMA sealed front for this LCD is $100/unit. There is an accessory, the Cyberview IP-65, that can be added to your order either from the right of the product image or at the bottom of the page. (We have added more descriptive text to the accessory to make it clearer, thank you)
They are currently in stock and ready to ship within 24 hours of the time of your order.
Question: How do I order the RP819 with a 19TRB touch option?
Answer: Thank you for your inquiry.
To order the RP-819 with 19TRB, simply use the "Touch Screen" dropdown on this page and select the "-19TRB: e-Resistive touch screen w/ USB Controller" option. Alternatively you can also give us a call at 1-877-586-6654 and we can initiate the order process.
Question: Does is it have a DVI-I option or DVI-D only?
Answer: Thank you for your inquiry. Unfortunately, in terms of DVI connections this rack mount monitor only has the DVI-D option.
Question: What country is this product manufactured in?
Answer: This rackmount LCD monitor is manufactured in China.
Question: What is the cost of the optional touch screen? How do I specify it when ordering?
Answer: Thank you for your inquiry.
To order the RP-819 with a touch screen, simply use the "Touch Screen" dropdown on this page and select one of the touch screen options. Alternatively you can also contact your KVM Switches Online representative for touchscreen availability and pricing at 1-877-586-6654.
Question: Can I connect two VGA inputs to this monitor, and toggle between them via the OSD?
Answer: Thank you for your inquiry,
You could indeed connect two VGA inputs to the RP-819, and toggle between them. You can do this using one of the following two methods:
1) You can use a simple 2 port VGA switch i.e. the NTI SE-15V-2-2C1U, and then switch seamlessly between the sources using the buttons on the unit.
2) The RP-819 also by default includes both a VGA and a DVI-D input, so a user can pick the video input for their application. If you convert the DVI-D input to VGA with i.e. the Adder DVA, you could natively change sources between that and the other VGA in the OSD.
Question: RP-819TCB is this the correct P/N?
Answer: Thank you for your inquiry,
RP-819TCB is the correct part number for this RP-819 Rack LCD Panel with the e-Capacitive Touch Screen (w/ USB Controller) option.
To order the RP-819TCB, simply use the "Touch Screen" dropdown on this page and select the "-19TCB: e-Capacitive Touch Screen w/ USB Controller" option.
Please let us know if there is anything else we can ever help you with!
