2U 17" 4K Dual-display Rack Drawer

MRP-K17-2

$6,032.00$5,287.00
Save $745.00
Model: MRP-K17-2
Version: 17" 4K UHD
Displays: Dual
FREE Shipping on orders over $100

The CyberView MRP-K17-2 (MRP-K17-2L - left hinged mount, MRP-K17-2R - right hinged mount) is a 2U Dual-display (17") 4K UHD rack drawer that is designed for Command and Control Systems which demand quick deployment for multi-faceted displays.

4K 17" displays satisfy the increasing demand for superior graphics and image clarity. 2U 22" depth platform allows for small size and transit case portability. To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the MRP-K17-2 drawer is meticulously constructed by our team of experts in our own CNC facilities for such applications.

MRP-K17-2 Features and Benefits

  • Display port 1.2 video input ( per display )
  • 4K UHD (3840 x 2160) native resolution / 1920 x 1080 & 1920 x 1200 resolution support
  • 2U 22" short depth design
  • Light weight only 46 lbs / 21 kgs
  • Rugged construction for mobility & durability
  • Built-in solid bearing slide rails
  • Built-in dual stereo speaker ( per display )
  • Fits 24" ~ 36" rack via adjustable mounting brackets
  • 2-year standard warranty ( upgradable up to 5 years )

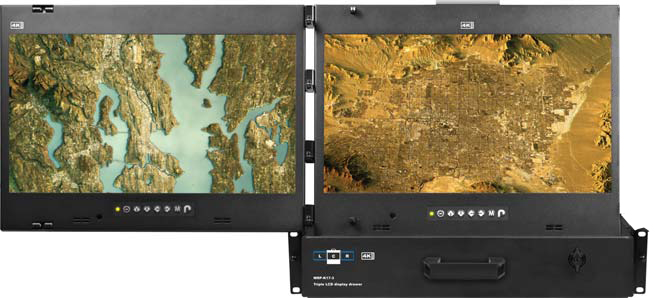

CyberView MRP-K17-2L / MRP-K17-2R

MRP-K17-2L / MRP-K17-2R Options

  • 3G / HD / SD-SDI Broadcast-grade input
  • Sunlight readable 17" FHD display
  • Audio Option: 2x 2W Speakers + aux input & output
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Touchscreen : Projected Capacitive ( 10-pt ) / Resistive ( 1-pt )

MRP-K17-2 Package Contents

CyberView MRP-K17-2 Package Contents
  • (1) MRP-K17-2 Monitor Drawer
  • (2) 6ft DisplayPort cable
  • (1) Power adapter & cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

MRP-K17-2 Resources

CyberView MRP-K17-2 Diagram MRP-K17-2 Brochure (PDF)
MRP-K17-2 Manual (PDF)

CyberView MRP-K17-2L / MRP-K17-2R Specifications

Mechanical
Product Dimensions (H x W x D)3.5 x 17.4 x 21.7 in
( 88 x 441.6 x 550 mm )
Package Dimensions (H x W x D)7.8 x 22.8 x 26.9 in
( 197 x 580 x 683 mm )
Net Weight42.7 lb ( 19.4 kg )
Gross Weight53.2 lb ( 24.2 kg )
Chassis ColorDark
Chassis MaterialsSteel
Mounting
Rack Mounting2U
Mounting Depth21.65 to 31.1 inch ( 550 to 790 mm )
Console Ports
Video InputDisplayPort 1.2 / HDCP 1.3
Video OptionHDMI 2.0 / HDCP 2.2
LCD Screen
LCD panel size ( diagonal )17.3"
Backlight typeLED
Native resolution3840 x 2160
Brightness (cd/m2)400
Colors16.7 M, 8-bit
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Response time ( ms )Max. 30 ms
Dot pitch ( mm )0.0995
Display area ( mm )382.12H x 214.94V
Surface treatmentAnti-glare
Surface hardness3H
MTBF (hrs)20,000
Audio Option
SpeakerBuilt-in 2x 2W dual stereo speaker ( per display )
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen onMax. 29W
Power saving modeMax. 9W
Power button onMax. 2W
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant
