1U 20" SUN CCFL LCD Display Drawer
SP-120
Save $124.00
Model: 20"
| Series | Model |
|---|---|
LCD Display Panel | |
Standard | |
| RP-K617 | 6U 17" 4K |
| RP-F617 | 6U 17" 1080p FHD |
| RP-X617 | 6U 17" 1920 x 1200 |
| RP-717 / RP-819 / RP-920 | 7U 17" / 8U 19" / 9U 20" |
| RP-W719 | 7U 19" 1440 x 900 |
Large | |
| RP-K923 | 9U 23" 4K |
| RP-F821 | 8U 21" 1080p FHD |
| RP-X924 | 9U 24" 1920 x 1200 |
High brightness | |
| RP-HF617 | 6U 17" 1080p FHD |
| RP-HF821 | 8U 21" 1080p FHD |
| RP-H717 / RP-H819 | 7U 17" / 8U 19" 1280 x 1024 |
| RP-HW719 | 7U 19" 1440 x 900 |
Sun display | |
| SP-717 / SP-819 / SP-920 | 7U 17" / 8U 19" / 9U 20" 1152 x 900 |
Split Quad display | |
| RP-F921QD-1080 | 9U 21" 1080p FHD |
| RP-919QD | 9U 19" 1280 x 1024 |
| RP-W819QD | 8U 19" 1440 x 900 |
Rack Monitor Drawer | |
Regular | |
| RP-K117 | 1U 17" 4K |
| RP-F117 | 1U 17" 1080p FHD |
| RP-X117 | 1U 17" 1920 x 1200 |
| RP-117 / RP-119 | 1U 17" / 1U 19" 1280 x 1024 |
| RP-W119 | 1U 19" 1440 x 900 |
| RP-120 | 1U 20" 1600 x 1200 |
Ultra Short depth | |
| RP-K1417 | 1U 17" 4K |
| RP-F1417 | 1U 17" 1080p FHD |
Dual & Triple display | |
| MRP-K17 | 2U 17" 4K |
| MRP-F17 | 2U 17" 1080p FHD |
| MRP-19 | 2U 19" 1280 x 1024 |
High brightness | |
| RP-HF117 | 1U 17" 1080p FHD |
| RP-HW119 | 1U 19" 1440 x 900 |
| RP-H117 / RP-H119 | 1U 17" / 1U 19" 1280 x 1024 |
Sun display | |
| SP-117 / SP-119 | 1U 17" / 1U 19" 1152 x 900 |
| SP-120 | 1U 20" |
Split Quad display | |
| RP-119QD | 1U 19" 1280 x 1024 |
| RP-W119QD | 1U 19" 1440 x 900 |

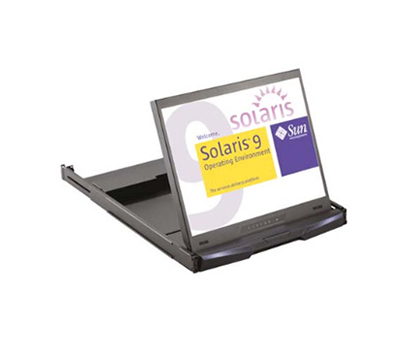

The SP-120 is a 1U 20" SUN rackmount LCD monitor drawer. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
Drawer Features and Display Benefits
- 1U 20" LCD drawer
- Direct Support for SUN Micro 1152 x 900 native resolution
- Enhanced aesthetics with molded front panel and two point lock
- Sliding LCD allowing LCD to remain open when the rack door is closed
- Installation slides for easy, quick installation
For DC power options please call 1-877-586-6654.
SP-120 Package Contents
- (1) SP-120 Rack Monitor Drawer
- (1) 6ft VGA cable
- (1) Power cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
SP-120 Resources
SP-120 Brochure (PDF)
SP-120 Manual (PDF)
SP-120 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.3 x 25.6 in ( 44 x 440 x 650 mm ) | ||||||
| Package Dimensions (H x W x D) | 5.5 x 23.4 x 33.9 in ( 140 x 595 x 860 mm ) | ||||||
| Net Weight | 29.7 lb ( 13.5 kg ) | ||||||
| Gross Weight | 38.5 lb ( 17.5 kg ) | ||||||
| Mounting | |||||||
| Rack Mounting | 1U | ||||||
| Mounting Depth | 26 to 35 inch (660 to 890 mm) | ||||||
| Console Ports | |||||||
| Video Input | VGA + DVI-D single link | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 20.1" | ||||||
| Backlight type | CCFL | ||||||
| Direct resolution | 1152 x 900 | ||||||
| Native resolution | 1600 x 1200 | ||||||
| Brightness (cd/m2) | 300 | ||||||
| Colors | 16.7 M | ||||||
| Contrast Ratio (typ) | 800 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 89/89/89/89 | ||||||
| Response time ( ms ) | 16 | ||||||
| Dot pitch ( mm ) | 0.255 | ||||||
| Display area ( mm ) | 408H x 306V | ||||||
| Surface treatment | Anti-glare, Hard-coating | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 45,000 | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
