7U 17" Rack Mount LCD Panel with TFT LCD Monitor

RP-717

$800.00$701.00
Save $99.00
Model: 7U 17"
FREE Shipping on orders over $100

The RP717 is a 7U 17" rackmount LCD monitor  with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

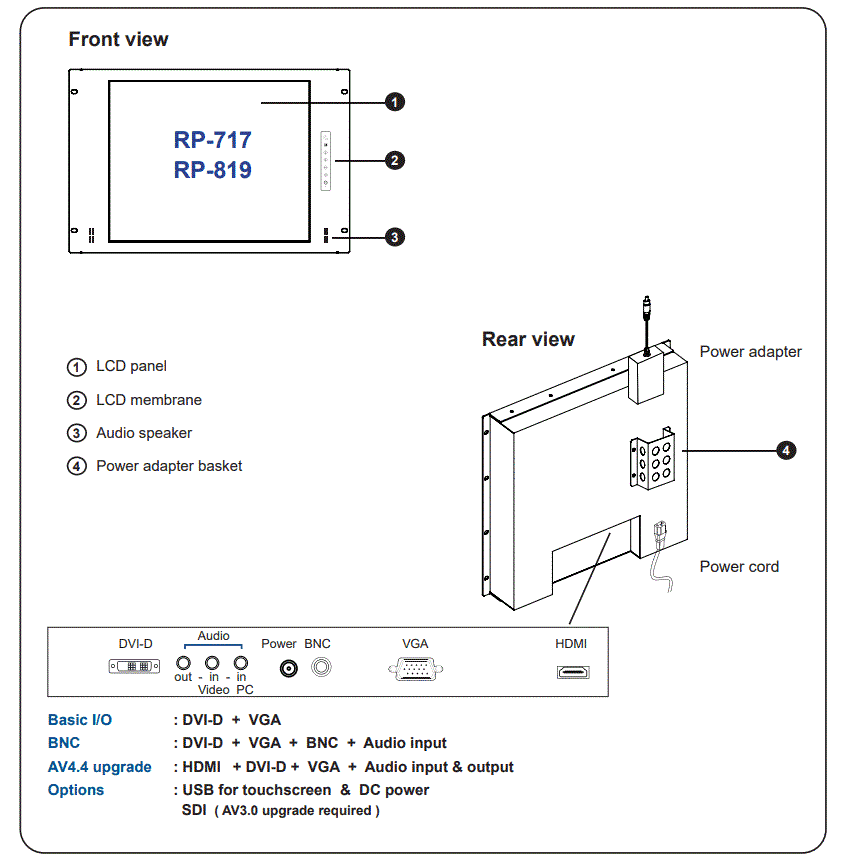

Austin Hughes CyberView RP-717 Diagram

RP717 Features

  • 7U 17" rackmount LC Dwith HDMI/VGA input
  • 1280 x 1024 native resolution / 16.7M colors ( RP-717 / 819 )
  • 1600 x 1200 native resolution / 16.7M colors ( RP-920 )
  • Ideal for CCTV security and industrial control

Available upgrades include

  • 3G/HD/SD-SDI Broadcast-grade input
  • MCS Multi-display control solution
  • 17" Touchscreen: Captive, Resistive
  • Composite (BNC) or Audio input
  • HDMI or DVI-D (Either one for AV2.2 upgrade)
  • DC power: 12V/24V/48V/110~125V
  • MIL-type or lockable connector

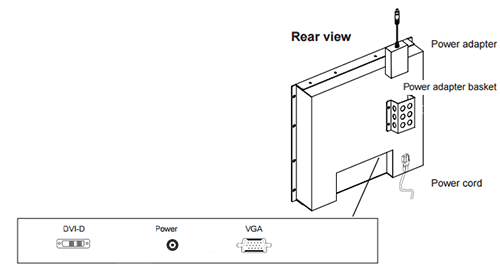

RP717 Rack Mount LCD with AV option
RP717 Rack Mount LCD with AV option

RP-717 Package Contents

CyberView RP-717 Package Contents
  • (1) RP-717 Rack LCD Panel
  • (1) 6ft VGA cable
  • (1) Power adapter
  • (1) Power cord
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RP-717 Resources

CyberView RP-717 Dimensions RP-717 Brochure (PDF)
RP-717 Manual (PDF)
Multi-Monitor OSD Controller (MCS) Brochure (PDF)
Multi-Monitor OSD Controller (MCS) Manual (PDF)
Touch Screen Calibration Manual (PDF)

RP-717 Specifications

Mechanical
Product Dimensions (H x W x D)12.2 x 18.9 x 2.1 in
( 310 x 480 x 54 mm )
Package Dimensions (H x W x D)19.5 x 20.8 x 4.9 in
( 495 x 529 x 124 mm )
Net Weight13.4 lb ( 6.1 kg )
Gross Weight18 lb ( 8.2 kg )
Console Ports
Video InputVGA + HDMI single link
Video OptionHDMI 1.2 / HDCP 1.1
Composite ( BNC ) - NTSC & PAL
LCD Screen
LCD panel size ( diagonal )17"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 160° x 160°
Response time ( ms )5
Dot pitch ( mm )0.264
Display area ( mm )337.92H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen onMax. 25W
Power saving modeMax. 4W
Power button onMax. 1W
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

The RP-717 series is also known as the RP717.

Question: Can this screen work at lower resolution i.e. 1024x768
Answer: Yes. The screen will function on the following resolutions:
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz

Question: do you have a similar screen with a Stainless bezel?
Answer: Thank you for you inquiry. Unfortunately, we do not have any screens with a stainless-steel bezel. We've also reached out to several manufacturers and none had a screen with stainless-steel.

Thank you for your patience as we waited for replies from our manufacturers.
