7U Rackmount 19" Widescreen LCD with high brightness
RP-HW719
Save $201.00
Model: RP-HW719
| Series | Model |
|---|---|
LCD Display Panel | |
Standard | |
| RP-K617 | 6U 17" 4K |
| RP-F617 | 6U 17" 1080p FHD |
| RP-X617 | 6U 17" 1920 x 1200 |
| RP-717 / RP-819 / RP-920 | 7U 17" / 8U 19" / 9U 20" |
| RP-W719 | 7U 19" 1440 x 900 |
Large | |
| RP-K923 | 9U 23" 4K |
| RP-F821 | 8U 21" 1080p FHD |
| RP-X924 | 9U 24" 1920 x 1200 |
High brightness | |
| RP-HF617 | 6U 17" 1080p FHD |
| RP-HF821 | 8U 21" 1080p FHD |
| RP-H717 / RP-H819 | 7U 17" / 8U 19" 1280 x 1024 |
| RP-HW719 | 7U 19" 1440 x 900 |
Sun display | |
| SP-717 / SP-819 / SP-920 | 7U 17" / 8U 19" / 9U 20" 1152 x 900 |
Split Quad display | |
| RP-F921QD-1080 | 9U 21" 1080p FHD |
| RP-919QD | 9U 19" 1280 x 1024 |
| RP-W819QD | 8U 19" 1440 x 900 |
Rack Monitor Drawer | |
Regular | |
| RP-K117 | 1U 17" 4K |
| RP-F117 | 1U 17" 1080p FHD |
| RP-X117 | 1U 17" 1920 x 1200 |
| RP-117 / RP-119 | 1U 17" / 1U 19" 1280 x 1024 |
| RP-W119 | 1U 19" 1440 x 900 |
| RP-120 | 1U 20" 1600 x 1200 |
Ultra Short depth | |
| RP-K1417 | 1U 17" 4K |
| RP-F1417 | 1U 17" 1080p FHD |
Dual & Triple display | |
| MRP-K17 | 2U 17" 4K |
| MRP-F17 | 2U 17" 1080p FHD |
| MRP-19 | 2U 19" 1280 x 1024 |
High brightness | |
| RP-HF117 | 1U 17" 1080p FHD |
| RP-HW119 | 1U 19" 1440 x 900 |
| RP-H117 / RP-H119 | 1U 17" / 1U 19" 1280 x 1024 |
Sun display | |
| SP-117 / SP-119 | 1U 17" / 1U 19" 1152 x 900 |
| SP-120 | 1U 20" |
Split Quad display | |
| RP-119QD | 1U 19" 1280 x 1024 |
| RP-W119QD | 1U 19" 1440 x 900 |

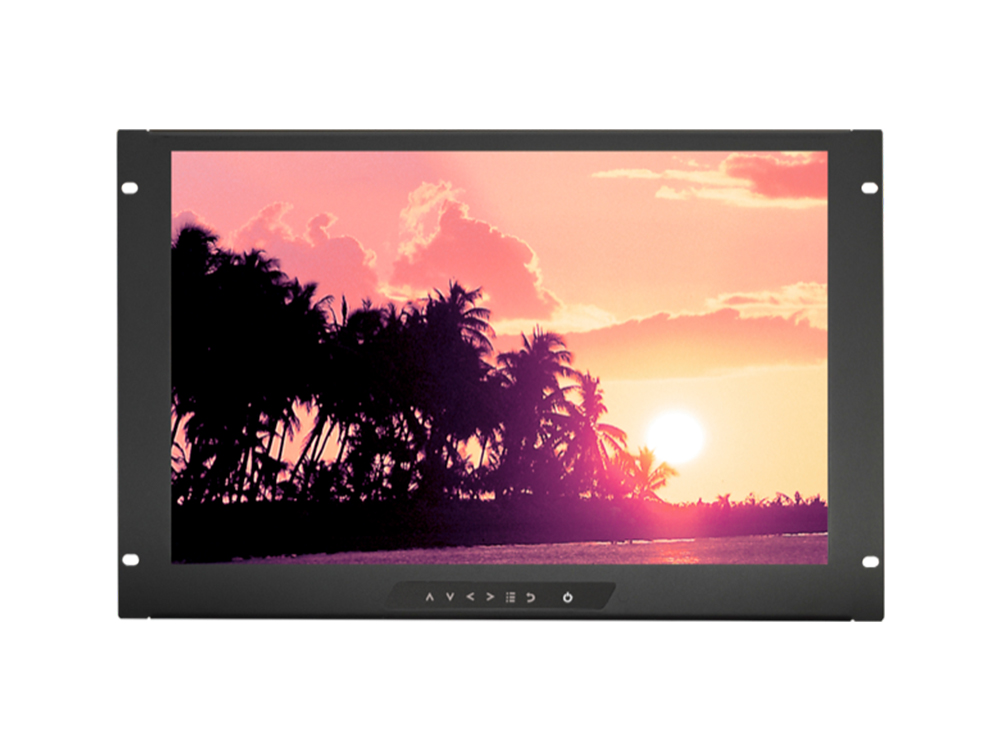

The RP-HW719 is a 7U 19" Widescreen rackmount LCD monitor with features such as Green LED-backlit panel technology and high brightness. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
RP-HW719 Display Features & Benefits
- 7U rackmount 19" widescreen LCD with high brightness 1000 cd/m2
- Green LED-backlit panel technology
- Ideal for CCTV security & industrial control
RP-HW719 Package Contents
- (1) RP-HW719 Rack LCD Panel
- (1) 6ft VGA cable
- (1) Power adapter
- (1) Power cord
- (1) 2-year standard warranty ( upgradable up to 5 years )
RP-HW719 Resources
RP-HW719 Brochure (PDF)
RP-HW719 Manual (PDF)
Multi-Monitor OSD Controller (MCS) Brochure (PDF)
Multi-Monitor OSD Controller (MCS) Manual (PDF)
Touch Screen Calibration Manual (PDF)
RP-HW719 Specifications
| Mechanical | |||||||

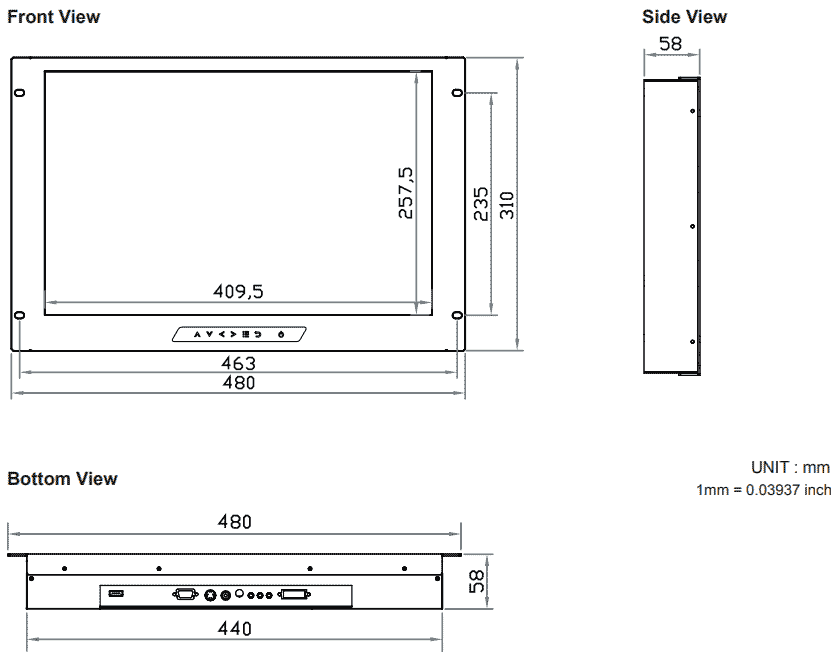

| Product Dimensions (H x W x D) | 12.2 x 18.9 x 2.3 in ( 310 x 480 x 58 mm ) |
||||||
| Package Dimensions (H x W x D) | 17.8 x 20.8 x 4.9 in ( 451 x 529 x 124 mm ) |
||||||
| Net Weight | 12.8 lb ( 5.8 kg ) | ||||||
| Gross Weight | 17.4 lb ( 7.9 kg ) | ||||||
| Mounting | |||||||
| Rack mount | 7U | ||||||
| Console Ports | |||||||
| Video Input | VGA + HDMI single link | ||||||
| Video Option | HDMI 1.2 / HDCP 1.1 S-Video ( 4-pin ) - NTSC & PAL Composite ( BNC ) - NTSC & PAL |
||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 19" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 1440 x 900 | ||||||
| Brightness (cd/m2) | 1000 | ||||||
| Colors | 16.7 M | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 80/80/80/80 | ||||||
| Response time ( ms ) | 5 | ||||||
| Dot pitch ( mm ) | 0.2835 | ||||||
| Display area ( mm ) | 408.24H x 255.15V | ||||||
| Surface treatment | Haze 25%, Hard-coating | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 30,000 | ||||||
| Audio Option | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Input Connector | 3.5mm stereo jack | ||||||
| Input Impedance / Power level | 30Ω / 750mV | ||||||
| Output Connector | 3.5mm stereo jack | ||||||
| Output Impedance / Power level | 30Ω / 2.8V | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
|
||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
