9U 20" Touchscreen Rack Mount LCD Panel
RP-920-TRB
Save $287.00
| Series | Model |
|---|---|
LCD Display Panel | |
Standard | |
| RP-K617 | 6U 17" 4K |
| RP-F617 | 6U 17" 1080p FHD |
| RP-X617 | 6U 17" 1920 x 1200 |
| RP-717 / RP-819 / RP-920 | 7U 17" / 8U 19" / 9U 20" |
| RP-W719 | 7U 19" 1440 x 900 |
Large | |
| RP-K923 | 9U 23" 4K |
| RP-F821 | 8U 21" 1080p FHD |
| RP-X924 | 9U 24" 1920 x 1200 |
High brightness | |
| RP-HF617 | 6U 17" 1080p FHD |
| RP-HF821 | 8U 21" 1080p FHD |
| RP-H717 / RP-H819 | 7U 17" / 8U 19" 1280 x 1024 |
| RP-HW719 | 7U 19" 1440 x 900 |
Sun display | |
| SP-717 / SP-819 / SP-920 | 7U 17" / 8U 19" / 9U 20" 1152 x 900 |
Split Quad display | |
| RP-F921QD-1080 | 9U 21" 1080p FHD |
| RP-919QD | 9U 19" 1280 x 1024 |
| RP-W819QD | 8U 19" 1440 x 900 |
Rack Monitor Drawer | |
Regular | |
| RP-K117 | 1U 17" 4K |
| RP-F117 | 1U 17" 1080p FHD |
| RP-X117 | 1U 17" 1920 x 1200 |
| RP-117 / RP-119 | 1U 17" / 1U 19" 1280 x 1024 |
| RP-W119 | 1U 19" 1440 x 900 |
| RP-120 | 1U 20" 1600 x 1200 |
Ultra Short depth | |
| RP-K1417 | 1U 17" 4K |
| RP-F1417 | 1U 17" 1080p FHD |
Dual & Triple display | |
| MRP-K17 | 2U 17" 4K |
| MRP-F17 | 2U 17" 1080p FHD |
| MRP-19 | 2U 19" 1280 x 1024 |
High brightness | |
| RP-HF117 | 1U 17" 1080p FHD |
| RP-HW119 | 1U 19" 1440 x 900 |
| RP-H117 / RP-H119 | 1U 17" / 1U 19" 1280 x 1024 |
Sun display | |
| SP-117 / SP-119 | 1U 17" / 1U 19" 1152 x 900 |
| SP-120 | 1U 20" |
Split Quad display | |
| RP-119QD | 1U 19" 1280 x 1024 |
| RP-W119QD | 1U 19" 1440 x 900 |
The RP-920TS is a 9U 20" rackmount LCD monitor with Resistive Touchscreen capabilities based on business needs. The integrated Touchscreen is available with a USB Controller (RP-920TRB). With this package a 6 ft USB cable, Installation Disc and quick reference guide are provided. The RP series provides a cost effective touchscreen rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
RP-920 Touchscreen Rackmount Monitor Features:
- 9U 20" rackmount LCD with HDMI/VGA input
- Ultra High resolution 1600 x 1200
- Ideal for CCTV security and industrial control
Resistive Touchscreens:
Resistive Touchscreen
Touch-sensitive computer displays composed of two flexible sheets coated with a resistive material and separated by an air gap or microdots. Resistive touchscreen technology works well with almost any stylus-like object, and can also be operated with gloved fingers and bare fingers alike.
| Model | TRB e-Resistive |
| Technology | 5-wire Resistive |
| Touch Point | Single |
| Method | Stylus or Finger |
| Activation Force | ≤50g / Stylus =R0.8 |
| Durability | 35 million touches |
| Response Time | 15 ms |
| Optical Transmittance | 80% ± 3% |
| Surface Hardness | 3H |
| Haze | 8% ± 3% |
| Glass | 3.2 ± 0.2 mm |
| Connector | USB Type A (Serial Option Available) |
| Compatibility | Windows 7 / XP / Vista, Linux |

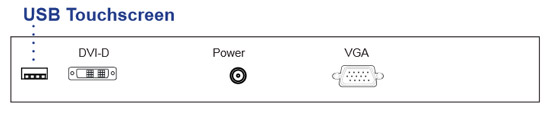

RP920 rear with Touchscreen USB option
Other available options include:
- Serial input for touchscreen
- 3G/HD/SD-SDI Broadcast-grade input
- MCS Multi-display control solution
- S-Video + Composite (BNC) or Audio input
- HDMI and DVI-D with DV4.$ upgrade)
- DC power: 12V/24V/48V/110~125V
- MIL-type or lockable connector
For Multi-display control, DC power, SDI, and/or serial input for your touchscreen, please call 1-877-586-6654.
RP920 Specifications:
| Mechanical | |
| Height | 15.7 (39.8 cm.) |
| Width | 18.9 in. (48 cm.) |
| Depth | 2.5 in. (6.3 cm.) |
| Weight | 18.5 lbs. (8.4 kg.) |
| Package Dimensions (HxWxD) | 4.9 x 23 x 20.8 in. (12.4 x 58.4 x 52.8 cm.) |
| Package Weight | 23.5 lbs. (10.7 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Screen | |
| Display Size | 20.1" TFT |
| Resolution | 1600 x 1200 |
| Brightness (cd/m2) | 300 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 800:1 |
| Viewing angle (H/V) | 178° x 178° |
| Active area (mm) | 408 x 306 |
| Signal Input | VGA or DVI-D |
The product available on this page represents part number:
RP-920-TRB aka RP920-20TRB
Answer: Thank you for your inquiry,
The RP-920TS is indeed compatible with Windows 10. You can find a list of RP-920 touch screen drivers here.
Please let us know if there is anything else we can help you with!
